Deformation mechanism of iPP under uniaxial stretching over a wide temperature range: An in-situ synchrotron radiation SAXS/WAXS study

Uniaxial stretching experiments of polypropylene films at 50 ^oC-150 ^oC are carried out to obtain the structure evolution routes by Xiaowei Chen. And releated work has been published on Polymer (2017, 118: 12-21）.

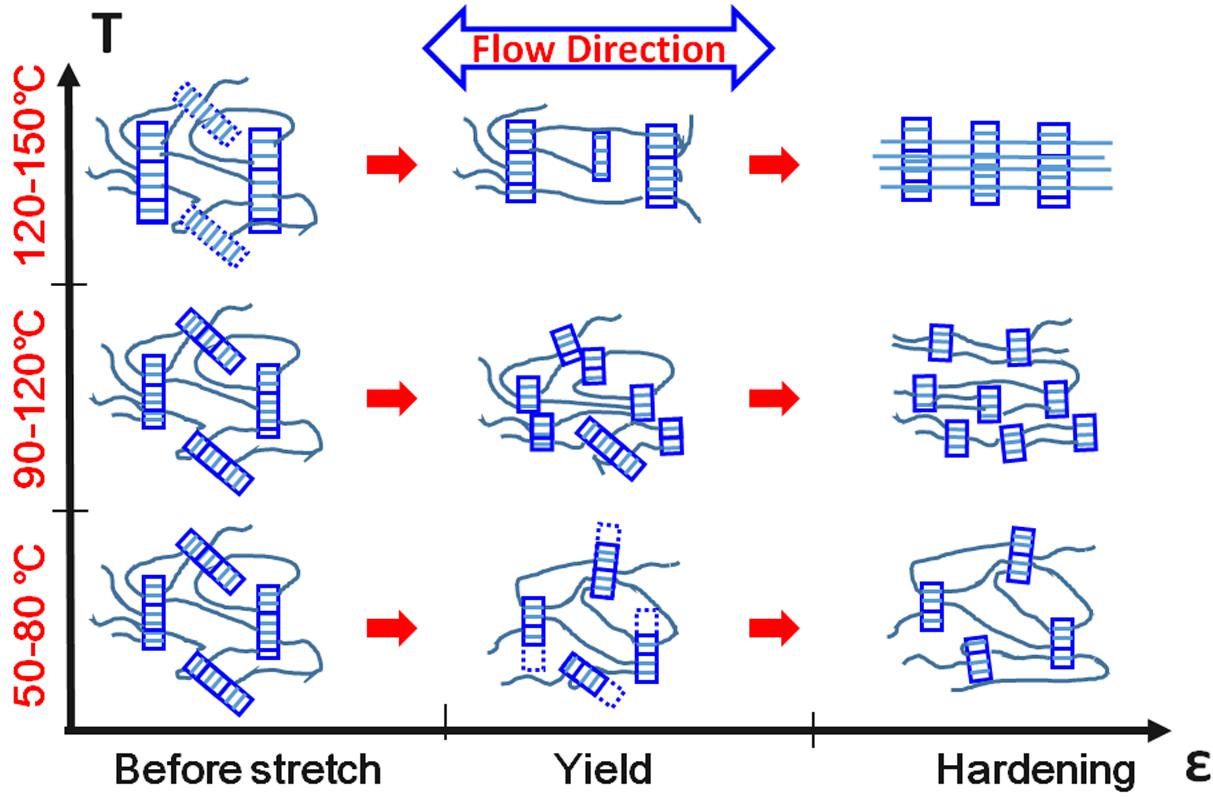

With a combination of homemade temperature jump extension apparatus and in-situ synchrotron radiation small and wide angle X-ray scattering (SR-SAXS and SR-WAXS) measurements, uniaxial stretching experiments of polypropylene films at 50 ^oC-150 ^oC are carried out to obtain the structure evolution routes. Three distinct features of the structure evolution are observed in temperature space, which can be described with three different deformation models, namely amorphization, crystalline block slip and melt recrystallization, respectively. Also, a refined morphology diagram in strain-temperature space is given to specify the morphology under two dimensional stretching parameter space. This work supplies a guidance for selecting processing conditions to obtain optimal structures after uniaxial stretching in industry.

This work is supported by the Natural Science Foundation of China (51227801, 51325301, 516330 09). The beam line BL16B of Shanghai Synchrotron Radiation Facility (SSRF) is acknowledged for the provision of synchrotron beam time.
